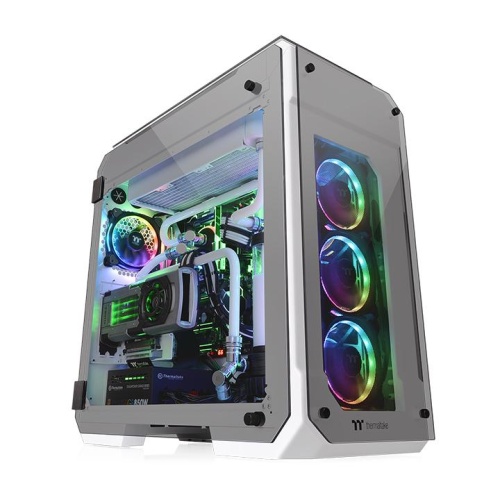

Designed to expand the legacy of the View Series lineup, the View 71 Tempered Glass Snow Edition Full Tower Chassis features unrivaled cooling support and expandability surrounded in tempered glass for a one of a kind view. Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. Preinstalled with two 140mm Riing white fans, Vertical GPU mount and 3-Way radiator support for today’s PC hardware demands, the only limitation is your imagination.
*Picture is for reference only. Two Riing 14 White fans are included.
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Premium-quality 5mm thick tempered glass guarantees the durability of the window and adds overall strength to the chassis.
Swing Doors on either side allows users to demonstrate their DIY spirit and enjoy the ultimate internal component visibility.
Take on easy to install building with a fully modular design and easy removal of swing door for full access.
The View 71 TG Snow Edition enables users to freely build their system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.
Tool-Free Installation
Innovative 3.5” and 2.5” tool-free drive bay design minimizes the hassles of installation/removal, allowing users to freely
interchange the 3.5” and 2.5” storage drives to secure and store with ease.
The View 71 TG Snow Edition allows users to build a complete high-end system that supports motherboards up to standard E-ATX with high-wattage PSU up to 220mm length. With extended graphic card support (up to 410mm), the case simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Modular HDD cage design offers more flexibility for custom cooling loops to take advantage of high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating enthusiast grade liquid cooling systems.
*Note: Cable management compatibility may vary based on motherboard size and design.
Specially designed for dual GPU placement options, the View 71 TG Snow Edition has the support for vertical graphic card
layout with dual PCI-E slots design. Integrated riser GPU support bracket not only prevents the graphic card from sagging,
but also helps to reduce the weight on the motherboard PCI-E slots.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions with ultra-excellent quality.
Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for
meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.
*PCI-e riser cable is optional.
*VGA width limitation when using with GPU bracket: 68mm (3.4 expansion slot reference).
The View 71 TG Snow Edition features its roomy installation space for advanced AIO/DIY liquid cooling components. The case
is natively supported for all types of AIO liquid cooling solutions. The case has the capability to house up to triple
420mm DIY liquid cooling radiator fitment and up to 360mm AIO liquid coolers. Most importantly, the case design is optimized
for providing users a quick way to access the drain valve without having to turn around the entire PC when evacuating coolant
from the loop.
*Radiator configurations and compatibility may vary depending on radiator size and thickness.
Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 420mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast grade cooling, fitment and flow.
With wide top-to-bottom side ventilation grills, the View 71 TG Snow Edition maximizes airflow with two built-in 140mm Riing
white fans. Including options for up to three 120mm or two 140mm front fans, combined with two bottom mount 120mm fan locations
for maximum fan space selection. Dissipate heat properly with one rear fan and three sectional top mounts to manage proper
air flow in and out.
Thermaltake Riing 14 LED white – A 140mm high-static pressure fan with a patented white LED ring.
*The image is for reference only; two Riing 14 white fans are included.
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
||||||||||||||||||||
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
1.0
LEARN MORE
TT RGB PLUS 2.0 Software
The new version of Thermaltake’s TT RGB PLUS patented
software, providing more lighting effects and PC monitoring functions.
Caution:
TT RGB PLUS and TT RGB PLUS 2.0 will overwrite one another; users can only install one
version of TT RGB PLUS 1.0 or
2.0.
This product only supports TT RGB Plus 2.0.
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
TT AI Voice Control
Give you full control over the TT RGB PLUS
products with your voice. “SyncALL, Say”Hello TT”.
Note: TT AI Voice control, Razer Chroma and Amazon Alexa requires the use of at least one TT RGB PLUS software-enabled product to function.
| P/N | CA-1I7-00F6WN-00 |
|---|---|
| Series | View |
| Case Type | Full Tower |
| Dimension (H x W x D) | 592 x 274 x 577 mm (23.3 x 10.8 x 22.7 inch) |
| Net Weight | 18.9 kg / 41.66 lb |
| Side Panel | 5mm Tempered Glass x 4 (Left & Right & Front & Top) |
| Color | Exterior & Interior : White |
| Material | SPCC |
| Cooling System | Rear (exhaust) : 140 x 140 x 25 mm Riing LED White fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) Front (intake) : 140 x 140 x 25 mm Riing LED White fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) |
| Drive Bays -Accessible -Hidden |
2.5” x 4 or 3.5”x4 (HDD Rack) 2.5”x 6 or 3.5” x 3 |
| Expansion Slots | 8+2 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm , 2 x 140mm Top: 3 x 120mm , 3 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm |
| Radiator Support | Front: 1 x 360mm , 1 x 420mm Top: 1 x 360mm , 1 x 420mm Rear: 1 x 120mm, 1 x 140mm Right: 1 x 360mm, 1 x 420mm Bottom: 1 x 240mm |
| Clearance | CPU cooler height limitation: 190mm VGA length limitation: 310mm(With HDD Rack) 410mm(Without HDD Rack) PSU length limitation: 220mm (Without Bottom Fan) |
