Divider 300 TG Air Snow Mid Tower Chassis Divider 300 TG Air Snow Mid Tower Chassis Divider 300 TG Air Snow Mid Tower Chassis Divider 300 TG Air Snow Mid Tower Chassis Divider 300 TG Air Snow Mid Tower Chassis Divider 300 TG Air Snow Mid Tower Chassis
Divider 300 TG Air Snow Mid Tower Chassis

Divider 300 TG Air Snow Mid Tower Chassis

In stock
P/N
CA-1S2-00M6WN-02
USD$119.99

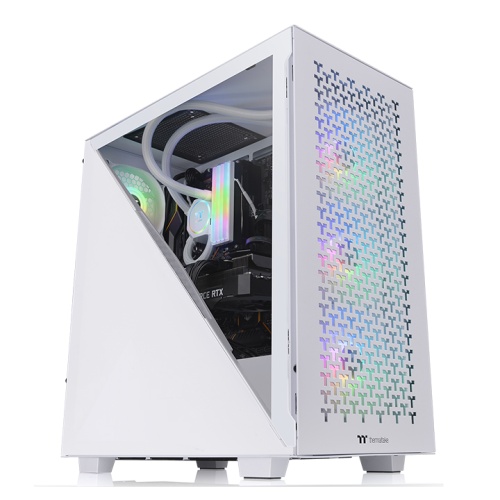

The Divider 300 TG Air Snow is an ATX mid tower case that comes with two preinstalled 120mm standard fans, a full-size mesh panel at the front, and one 3mm triangular tempered glass window on the left side.

Thermaltake

Divider 300 TG Air Snow

Showcase Your System in a Particular Way

Divider 300 TG Air Snow ATX Mid-Tower Chassis

Thermaltake designed a brand-new case series that contains a mixture of open-frame-styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 300 TG Air Snow Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On top of that, the air edition comes with one airflow-optimized mesh panel at the front for massive airflow. These panels are tool-free and easy to remove, showcasing the components inside. Additionally, the Divider 300 TG Air Snow comes with two 120mm standard fans at the front and rear for maximum cooling performance. The Divider 300 TG Air Snow ATX Mid Tower Case is the next -gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.


  • The image is for reference only.
  •


  •


  • The image is for reference only.
  •

  • The image is for reference only.
  •
Air Intake and Exhaust

The cooling performance of the Divider 300 TG Air Snow is excellent. The front mesh panel and the vent between the two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts are located at the rear of the case. On the top and right side, there are venting mechanisms for air intake or exhaust depends on the user’s overall PC layout design.


  • The image is for reference only.
  •
Idle and Full-load Temperature

To let our customers better understand the thermal performance of the Divider 300 TG Air Snow ATX Mid Tower Case, we placed an AIO Liquid Cooler at the front and ran a test system. It shows that the temperature around the front area is really low at idle and at full-load, with no obstructions and restricted airflow. For the test we used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running simultaneously for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

  • Idle
    Full-load

Specification

Motherboard ASUS ROG MAXIMUS XI HERO
CPU Intel® Core™ i5-9600K (TDP 95W)
GPU MSI GeForce RTX™ 3090 VENTUS 3X 24G OC
RAM Floe RC240 CPU & Memory AIO Liquid Cooler (Four sticks of DDR4 3200 8G)
PSU Toughpower GF2 ARGB 650W
CPU Cooler Floe RC240 CPU & Memory AIO Liquid Cooler
Fans Pure ARGB 120mm fans up to 4 (Front x 3, Rear x 1)
Software AIDA64 Extreme Portable, FurMark ASUS ROG Edition
Full load 30 min
Camara Testo 885-2 Thermal Imaging Camera

Excellent Hardware Support & Cooling Solution
The Divider 300 TG Air Snow has great hardware support. It can support a CPU cooler with a maximum height of 145mm, VGA with maximum length of 390mm (without radiator), a power supply with a length of up to 220mm (without HDD Cage), two 3.5” HDDs with five 2.5” SSDs or a total of seven 2.5” SSDs. When it comes to cooling, the Divider 300 TG Air comes preinstalled with two 120mm standard fans at the front and rear for a complete cooling environment. Moreover, it can hold up to one 140mm fan at the top and two 120mm fans on the right of the motherboard side. Moreover, the Divider 300 TG Air Snow is optimized for air cooling and advanced AIO liquid cooling components. It can support a 360mm AIO at the front, 240mm on the motherboard side, and 120mm at the rear.
  • 120mm
  • 140mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm
  • 360mm






More Information
P/N CA-1S2-00M6WN-02
Series Divider
Model Divider 300 TG Air Snow
Case Type Mid Tower
Dimension (H x W x D) 475 x 220 x 461 mm
(18.7 x 8.66 x 18.1 inch)
Net Weight 8.18 kg / 18.03 lbs.
Side Panel Tempered Glass x 1
Color White
Material SPCC
Cooling System Front(intake):
120 x 120 x 25 mm Standard fan (1000rpm, 16 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1
Drive Bays
-Accessible
-Hidden
2 x 3.5”, 5 x 2.5”
or 7 x 2.5
Expansion Slots 7 (Rotatable Patented Design)
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top:
1 x 120mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm
Radiator Support Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right (M/B Side):
1 x 240mm (vertical-installed GPU recommended),
1 x 120mm
Rear:
1 x 120mm
Clearance CPU cooler height limitation:
145mm VGA length limitation: 360mm(With radiator)
390mm(Without radiator)
PSU length limitation:
180mm (With HDD Cage)
220mm(Without HDD Cage)
